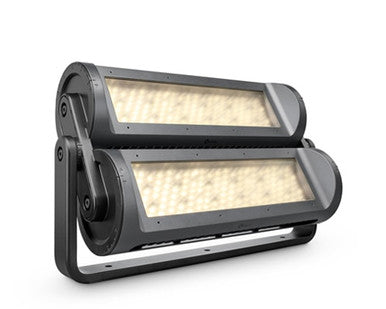

ReachElite High Output Powercore gen2, eW

ReachElite High Output is a premium exterior luminaire designed to light mid- to large-scale outdoor structures extremely efficiently. With over 125 LEDs per 100W module, ReachElite High Output delivers washes of white light in color temperatures ranging from a warm 2700 K to a cool 4000 K. The same full range of accessories as ReachElite allows for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost-effectiveness of Powercore technology. All three sizes of ReachElite High Output feature an IP66-rated die-cast aluminum housing with powder-coated finish and a tempered glass lens.

ReachEliteHigh Output Powercore gen2 fixtures are part of a lighting LED lighting system that may require:

Slipfitter Mount, 2-3/8in

Louver

Rock Guard

Half Glare Shield

Full Glare Shield

Spread Lens With Trim Bezel, 10°, (28° Effective beam)

Spread Lens With Trim Bezel, 20°, (36° Effective beam)

Spread Lens With Trim Bezel, 40°, (58° Effective beam)

Spread Lens With Trim Bezel, 60°, (76° Effective beam)

Spread Lens With Trim Bezel, 80°, (90° Effective beam)

3 Conductor Leader Cable, For use with all ReachElite family luminaires, 100 to 277 VAC, 15.2 m (50 ft), UL

3 Conductor Leader Cable, For use with all ReachElite family luminaires, 100 to 277 VAC, 3 m (10 ft), UL

4 Conductor Leader Cable, For use with ReachElite luminaires, 15.2 m (50 ft), UL (for digital dimming)

4 Conductor Leader Cable, For use with ReachElite luminaires, 3 m (10 ft), UL (for digital dimming)

Data Enabler Pro gen3, 3/4 in / 1/2 in NPT (U.S. trade size conduit) - required for digital dimming

Features:

• Up to 87 lumens per watt
  Delivering exceptionally high flux of up to 87 lm/W, ReachElite High Output maximizes lumens from each LED channel individually. Providing remarkable lumen output, this breakthrough approach far exceeds lumen output from traditional luminaires by 3X, easing specification, and reducing the overall cost of each project.

• Close mixing distance
  ReachElite High Output eW features a native 25-degree luminaire with over 125 LEDs, custom optics, and an internal diffuser. This unique design virtually eliminates pixilation and shortens mixing distance dramatically, providing beautiful consistent light, even at close range. 

• Application adaptability
  ReachElite High Output excels in a wide range of lighting applications including flood lighting, spot lighting, wall grazing, and wall washing. Optional secondary accessories combined with easy precise aiming bring flexibility to customize the look and performance of any project.  Precision optical system allows for placement freedom.

• Design flexibility
  ReachElite High Output is available in three versions: 100 W, 200 W, and 300 W. Each luminaire contains either one, two, or three 100 W heads that can be aimed independently of each other. This empowers lighting designers to utilize multiple applications and beam direction in a single luminaire.

• Chromasync Pro technology
  Improves color consistency between all LED luminaires within 2SDCM and simplifies commissioning.  The color control algorithm utilizes active temperature measurement combined with the data measured during manufacturing each array.   

• Flexible field-installed accessories
  Choose from a full line of high-quality accessories, from seven different spread lenses, a louver, full and half glare shields, a rock guard, and a slipfitter mount for all ReachElite luminaires. Color Kinetics accessories make project customization simple.

• Reliable
  ReachElite High Output Powercore provides years of reliable use under rugged conditions. ReachElite High Output raises reliability even further with more protection from corrosion by meeting ASTM B117 standard for > 1,500 hours of corrosion resistance and ANSI C136.31-2018 standard with a 5G vibration rating (3G with slipfitter), and elimination of water pooling on main cover lens and accessories.

• Integrated Patented Powercore Pro technology
  Powercore controls power output to luminaires directly from line voltage - rapidly, efficiently, and accurately. The latest Powercore technology coupled with Data Enabler Pro gen3 enables longer run lengths of up to 400 feet, simplifying installations and reducing costs.

• Precision Dimming
  Smooth digital dimming down to 1% with optional Data Enabler Pro and digital control interface.
