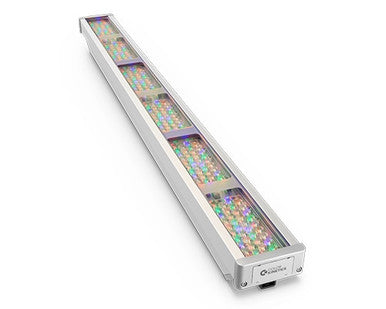

Graze Elite Powercore

Graze Elite is a high-performance versatile exterior luminaire ideal for bright, even illumination of architectural details, façades, and surface textures. The latest Color Kinetics IntelliHue technology enables precision color-matching with millions of saturated colors, including red, amber, and purple—as well as exceptional white light. Graze Elite builds on the proven quality and reliability that the Graze family is known for, while delivering twice the output of previous generations while consuming less power. Its streamlined, rugged design protects it from the elements, ensuring years of hands-off operation.

Graze Elite Powercore fixtures are part of a lighting LED lighting system that may require:

Graze Elite Glare Shield Kit, 311 mm (1 ft), Gray

Graze Elite Glare Shield Kit, 614 mm (2 ft), Gray

Graze Elite Glare Shield Kit, 919 mm (3 ft), Gray

Graze Elite Glare Shield Kit, 1225 mm (4 ft), Gray

Graze Elite Masking Shield Kit, 384 mm (1 ft), Gray

Graze Elite Masking Shield Kit, 614 mm (2 ft), Gray

Graze Elite Masking Shield Kit, 919 mm (3 ft), Gray

Graze Elite Masking Shield Kit, 1299 mm (4 ft), Gray

Graze Elite Louver Kit, 309 mm (1 ft), Gray

Graze Elite Louver Kit, 614 mm (2 ft), Gray

Graze Elite Louver Kit, 919 mm (3 ft), Gray

Graze Elite Louver Kit, 1224 mm (4 ft), Gray

Architectural Mounting Arm, for use with Blast, Graze Elite, Graze, Graze Compact, Burst Architectural. Short, gray

Architectural Mounting Arm, for use with Blast, Graze Elite, Graze, Graze Compact, Burst Architectural. Medium, gray

Architectural Mounting Arm, for use with Blast, Graze Elite, Graze, Graze Compact, Burst Architectural. Long, gray

4 Conductor Leader Cable, For use with Graze Powercore, ReachElite, 100 to 277 VAC, 15.2 m (50 ft), Black, UL

4 Conductor Leader Cable, For use with Graze Powercore, ReachElite, 100 to 277 VAC, 3 m (10 ft), Black, UL

4 Conductor Leader Cable, For use with Graze Powercore luminaires, 1.52 m (5 ft), UL, for Inground Enclosure

Color Kinetics GRAZE COMPACT POWERCORE, JUMPER CABLE, 1FT, UL

Data Enabler Pro gen3, 3/4 in / 1/2 in NPT (U.S. trade size conduit) 100 to 277 VAC, UL

Features:

• High performance with less energy
  Graze Elite provides twice the light output of current Graze luminaires, thanks to FluxBoost technology, which optimizes power and quality. And because it uses reliable, carefully selected mid-power LEDs, Graze Elite uses significantly less power than previous Graze luminaires.

• Versatile, high-quality output—color and white
  The latest Color Kinetics IntelliHue technology enables the multi-channel Graze Elite (red, green, blue, amber, white) to output millions of saturated colors—as well as white light. Graze Elite outputs this wide gamut with exceptional accuracy (90+ CRI), including difficult-to-output colors, such as amber, purple, and magenta. And it outputs brilliant white light with high R9 values, exceeding the quality of white-only luminaires.

• Color consistency, no matter what
  Chromasync Pro makes it easy to achieve color consistency with Graze Elite no matter what the LED mix, output, beam angle, or luminaire family. Simply choose three DMX values and let Chromasync Pro do the rest, even when combining luminaires using three, four, five, or more channels.

• Longer run lengths
  The latest Powercore Pro technology enables longer run lengths of up to 400 feet, simplifying installations and reducing costs.

• Compatible with a wide range of controllers
  Choose the controller that meets your needs, including iPlayer 4, iPlayer 3, Antumbra iColor Keypad, and ColorDial Pro—as well as third-party controllers.

• Advanced optics
  Exceptional performance starts with Graze Elite’s custom-designed optical system, which uses unique optics for each LED, customized based on its color. Its mid-power LEDs are carefully chosen using Color Kinetics Optibin technology and individually tested to ensure maximum quality and consistency.

• Reliability under punishing conditions
  With its extruded aluminum body and tempered glass, Graze Elite’s rugged design raises reliability and provides protection from corrosion. It meets the ASTM B117 and ANSI C136-31-2023 Roadway and Area Lighting for normal applications. Bridges and Overpass Protection Kit available.

• Beam angle options
  Graze Elite is available in 6 standard beam angles 9° x 9°, NEW 10° x 15°, 10° x 60°, 15° x 30°, 30° x 60°, 60° x 30°.

• Fast, easy installation
  Convenient push-and-click connectors let you easily and rapidly install leader cables and jumper cables. Constant torque locking hinges offer simple and consistent position control from various angles. Customize Graze Elite with mounting arms (three sizes) or masking shields.

• Sustainable design
  Graze Elite is designed to be sustainable with a modular design, as well as being constructed with recyclable materials such as glass, and aluminum.
