eW Cove MX Powercore, 4 Foot, 2200K, Very Wide Beam, 50W, UL/CE

'Premium interior linear LED cove and accent fixture with solid white light'

eW Cove MX Powercore Key Features:

• Available in 2200 K, 2700 K, 3000 K, 3500 K, and 4000 K.
• Accepts power input of 100 ? 277 VAC for consistent installation in any location around the world.
• Smooth dimming capability with selected commercially a available reverse-phase ELV-type dimmers.
• Powercore delivers line voltage directly to the fixtures, simplifying installation and allowing product runs of 49 fixtures at 100 VAC to 136 fixtures at 277 VAC.

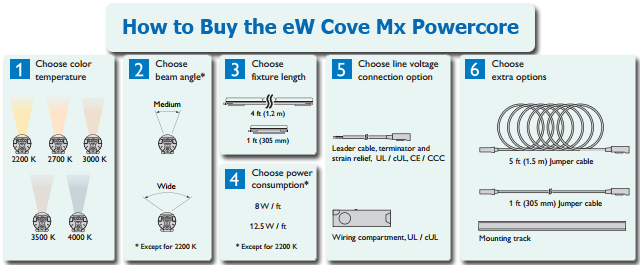

Purchasing the ew Cove QLX Powercore

Fixtures are part of a system which require:

1.) Line voltage connection. Leader cable or a wiring compartment

2.) Depending on the installation's design, you may want one foot or five foot jumper cables to ad space between fixtures or the fixtures can be mounted directly together.

3.) Optional mounting track ensures straight runs of fixtures


eW Cove MX Powercore- Spec Sheet





eW Cove QLX Powercore represents the next generation of high-quality linear LED cove lighting from Philips Color Kinetics. This elegant, low-profile fixture delivers up to 276 lumens per foot of white light at an affordable price. eW Cove QLX Powercore is designed to replace traditional cove lighting sources for wall and ceiling glow effects, wall washing, and indirect lighting from a single cove.




Lower cost than comparable fluorescent strip lighting- With efficacy of up to 58.5 lumens per watt competitive pricing, long useful life, and low-maintenance operation, eW Cove MX Powercore represents a cost-effective alternative to traditional cove lights, offering lower first and total cost than dimmable T5 and 2-lamp T8 strip lights in typical cove applications.




Two lengths and miltiple color temperature options for design and application flexibility- 1 ft. (305 mm) and 4 ft. (1.2 m) fixtures are available in 2200k, 2700k, 3000k, 3500k, and 4000k for applications calling for warm, neutral, or cool white light.




Multiple levels of power consumption- 12.5w /ft fixtures offer high-intensity light output of up to 696 lumens per foot. 8 W/ Ft. fixtures are factory-set to a lower maximum power consumption level to support ASHRAE standards, LEED green building certification, and other power-limited porjects.




Very warm white light- 2200k fixtures produce an inviting golden light comparable to halogen and xenon dimmed to 50%, but without sacrificing efficacy, lumen output, or quality of light.




Integrates patented Powercore technology- Powercore rapidly, efficiently, and accurately controls power output to fixtures directly from line voltage, eliminating the need for external power supplies and lowering total system cost.




Support for multiple voltages- Accepts power input of 100- 277 VAC, allowing consistent installation in any location around the world.




Superior color consistency and accuracy- Optibin, an advanced binning algorithm, exceeds the recognized standards for color quality to guarantee uniformity and consistency of hue and color temperature across LED sources, fixtures, and manufacturing runs.


Simple installation- Powercore delivers line voltage directly to the fixtures, simplifying installation and allowing long product runs. Easy-to-install 4 ft. (1.2m m) mounting tracks allow quick project setup in linear applications.

Easy mounting and positioning- With end-to-end locking power connectors that can make turns of up to 180?, fixtures rotate in 10? increments through a full 180? for precise aiming and color mixing. Optional mounting tracks support vertical and overhead positioning. 1 foot (305 mm) and 5 ft. (1.5 m) jumper cables can add extra space between fixtures.
