Waterproof LED High Bay Lights

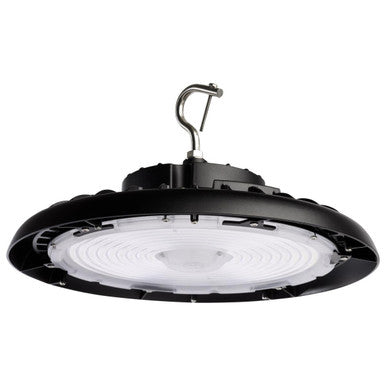

Designed for demanding commercial and industrial environments, these Waterproof LED High Bay Lights deliver exceptional performance where standard high bays simply are not enough. Available in both linear and round UFO styles, each fixture features an IP69K-rated sealed housing that protects against dust, high-pressure water jets, and frequent washdowns, making them an ideal solution for food processing facilities, pharmaceutical manufacturing, commercial car washes, agricultural buildings, and other harsh environments.

The fixtures provide dependable illumination with 80+ CRI, an 85° beam angle, and smooth 0-10V dimming compatibility for integration with modern lighting controls. An integrated sensor port also allows occupancy or daylight sensors to be added for even greater energy savings and automated operation. Designed to operate in temperatures from -40°F to +122°F, these fixtures perform reliably in challenging indoor environments year-round.

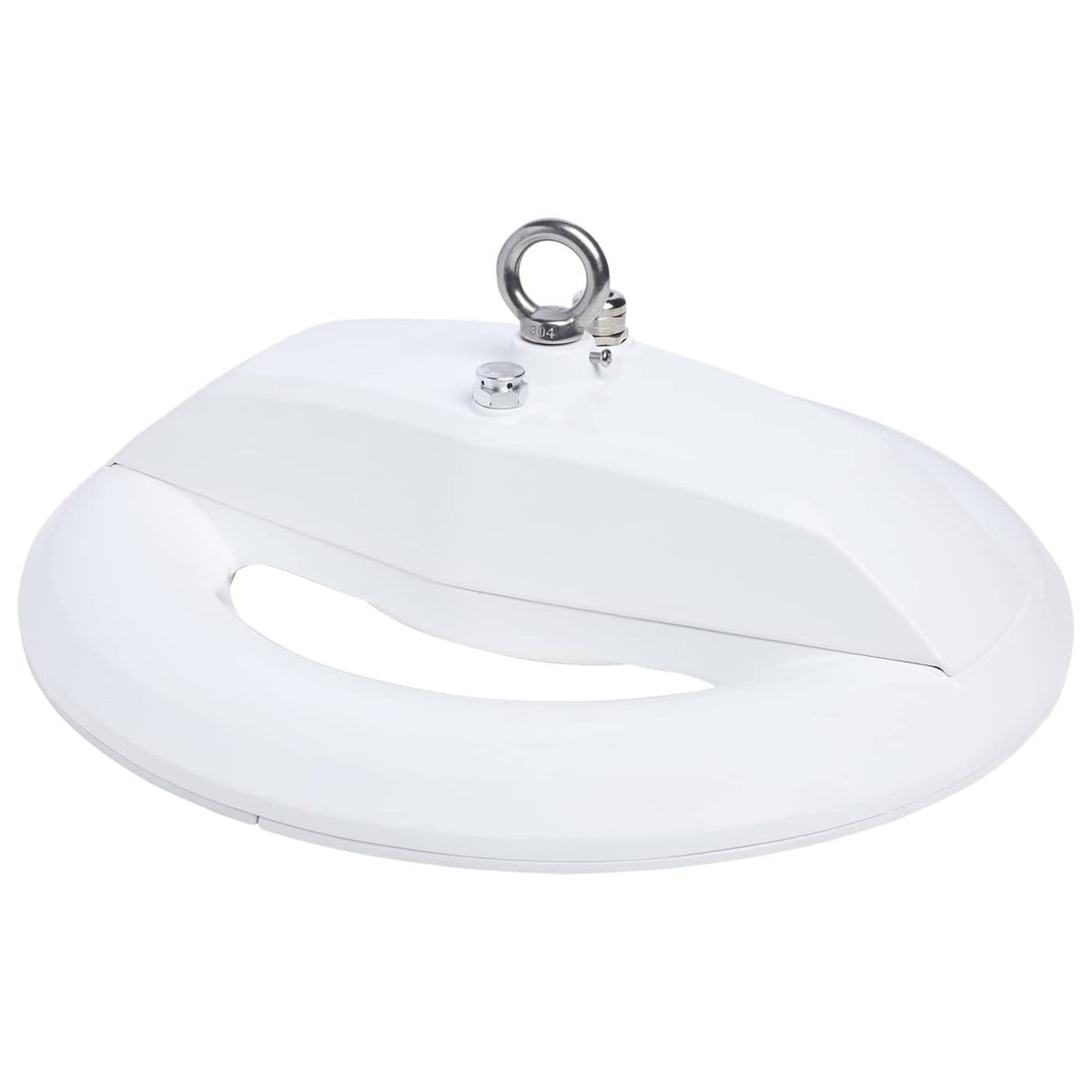

Available in multiple wattage packages with input voltage options up to 480V, these waterproof LED high bays offer the flexibility needed for warehouses, manufacturing plants, processing facilities, and large commercial buildings. The linear models include a 41-inch mounting chain, while the UFO models feature a 6-foot lead cable for quick installation. Optional accessories such as stainless-steel protective cages, yoke mounts, and an emergency battery backup module expand versatility; these options are special ordered by calling our sales dept.

Backed by a 5-year warranty, FCC compliance, RoHS compliance, NSF listing, and Wet Location certification, these Waterproof LED High Bay Lights deliver outstanding reliability, efficiency, and protection for facilities requiring superior washdown performance and dependable industrial lighting.

Features:

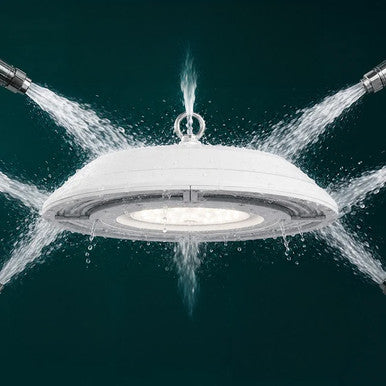

• IP69K-rated protection against dust and high-pressure, high-temperature washdowns
• IK10 impact resistant polycarbonate lens,
• 6kV surge protection
• Operating temperature range of -40°C to 55°C

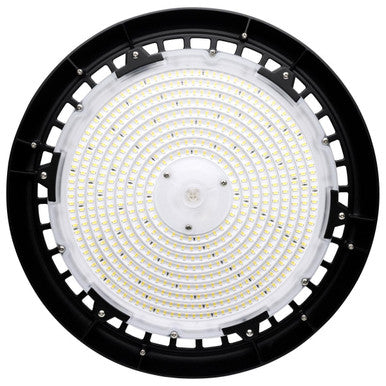

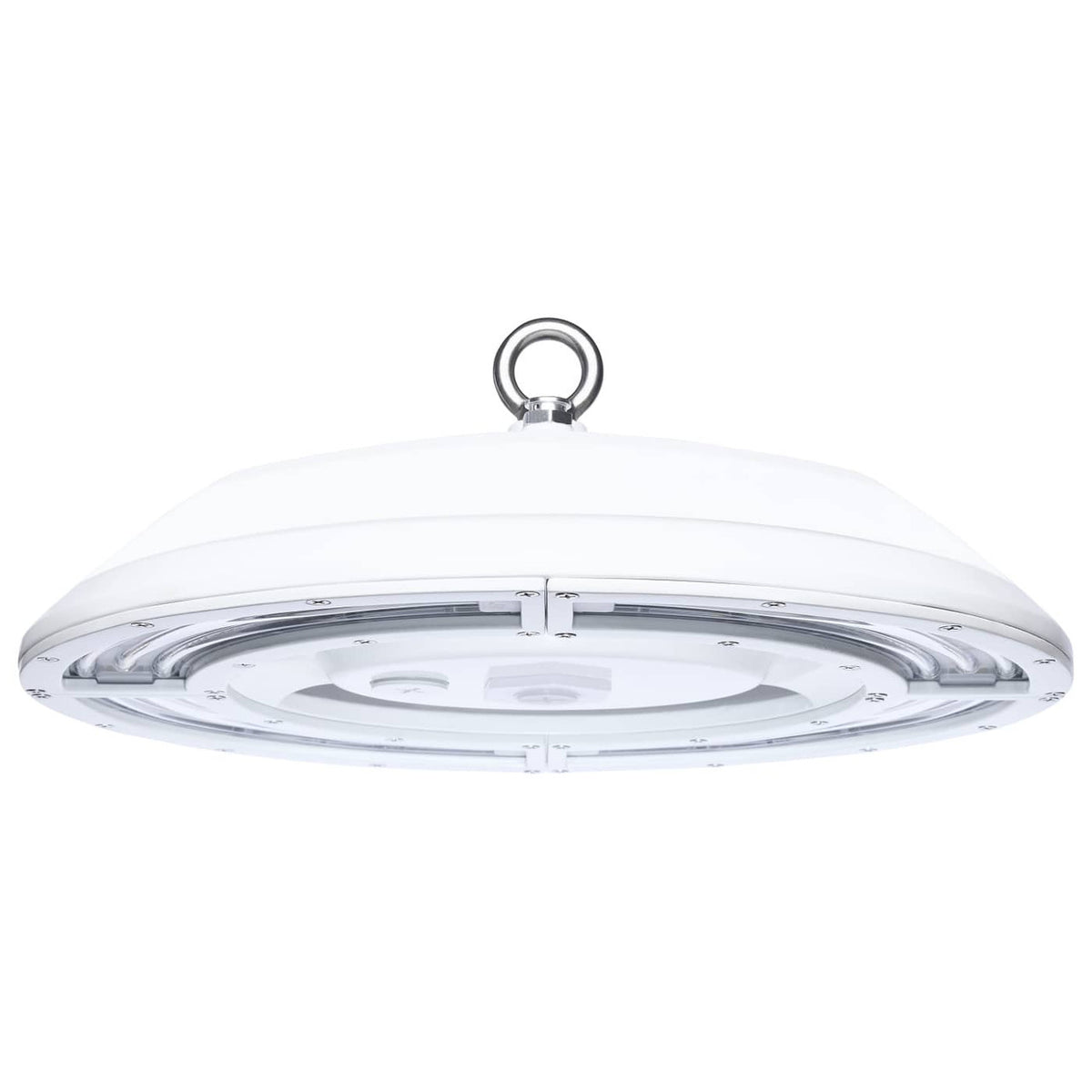

• Available in linear and UFO round high bay configurations

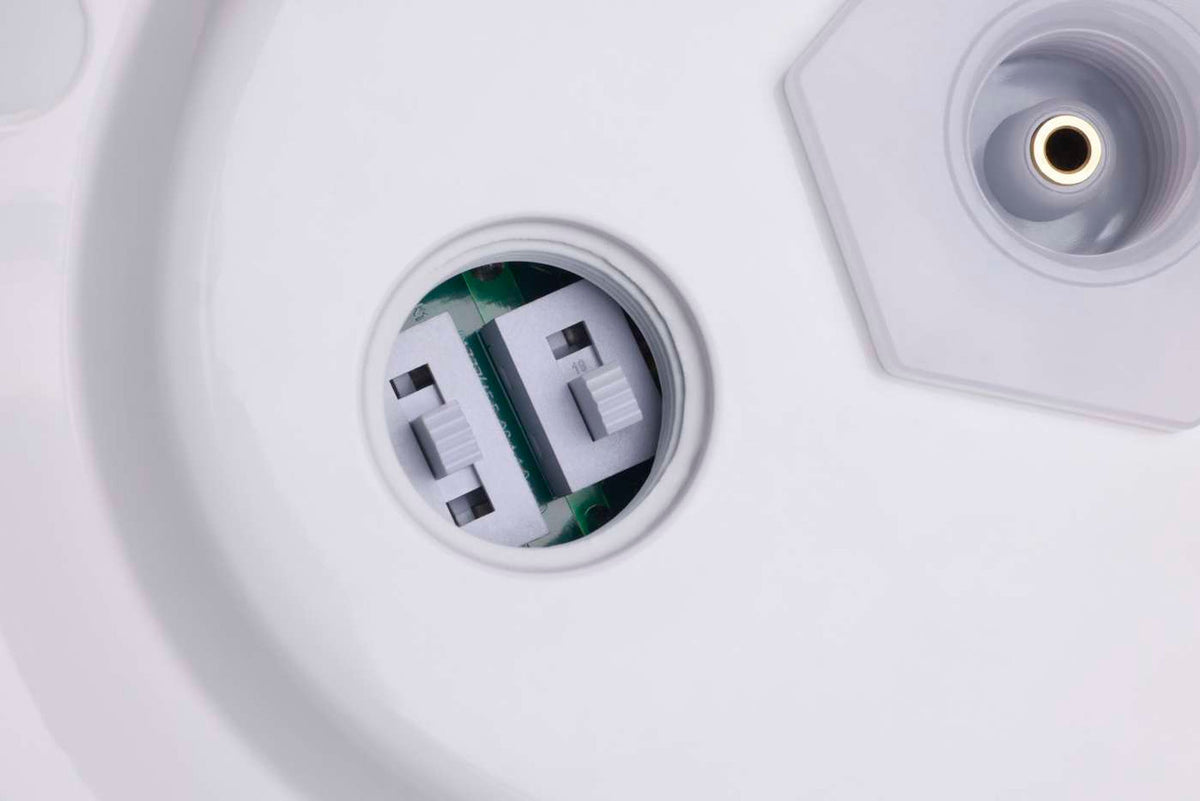

• Field-selectable wattage for flexible light output
• Field-selectable color temperature

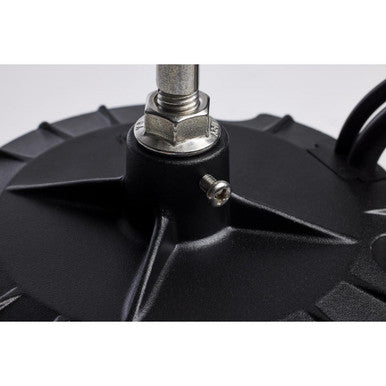

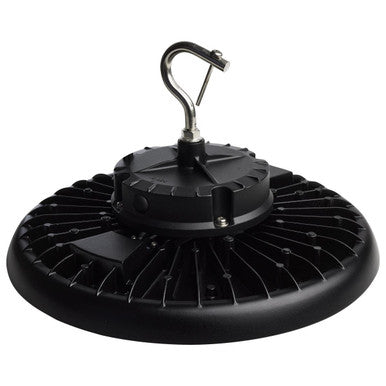

• Rugged die-cast aluminum housing

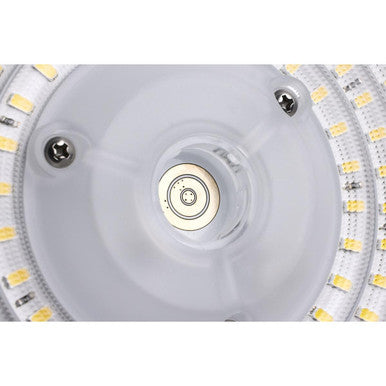

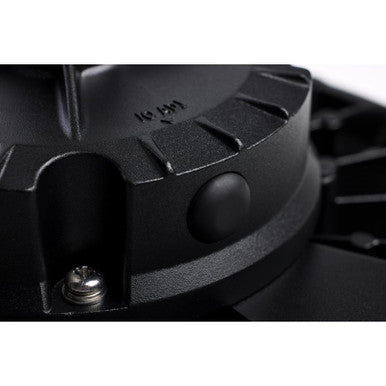

• Sensor ready with an integrated 3.5mm auxiliary port
• Smooth 0-10V dimming capability
• NSF Listed
• FCC compliant
• RoHS compliant
• 5-year limited warranty

Electrical:

• Input Voltage: Linear Models: 120-347V UFO Models: 120-277V or 347-480V
• Wattage Selectable
• Color Temperature Selectable: 3000K / 4000K / 5000K (linear models) 4000K / 5000K (UFO models)
• Maximum Light Output: Up to 51,000 lumens
• CRI: 80+
• Beam Angle: 85°
• Power Factor: >0.90
• Total Harmonic Distortion (THD): <20%
• Operating Frequency: 50/60Hz
• Operating Temperature: -40°F to +122°F (-40°C to +50°C)

Warranty:

• 5-year limited system warranty standard
• Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation(as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.
