LED Basket Troffer - Selectable 34/38/45 Watt - Recessed Drop Ceiling Mount - 4250-5700 Lumens - Color Selectable 35K/40K/50K - 120-277V - White Finish - Dimmable - With Emergency Battery Back Up
  • DESCRIPTION
  • SPECIFICATIONS
  • PRODUCT OPTIONS
  • REVIEWS
  • SHIPPING
  • WARRANTY & RETURNS
  • RELATED PRODUCTS

LED BASKET TROFFER Choose Between 2'x2' or 2'x4' Fixtures With Color Temperature Selectable Switches On Back Panel

EASY INSTALLATION

EASY INSTALLATION

Features pre-mounted drivers for contractor friendly installation. Mounting holes provided for seismic wire application.

VERSATILITY BY DESIGN

VERSATILITY BY DESIGN

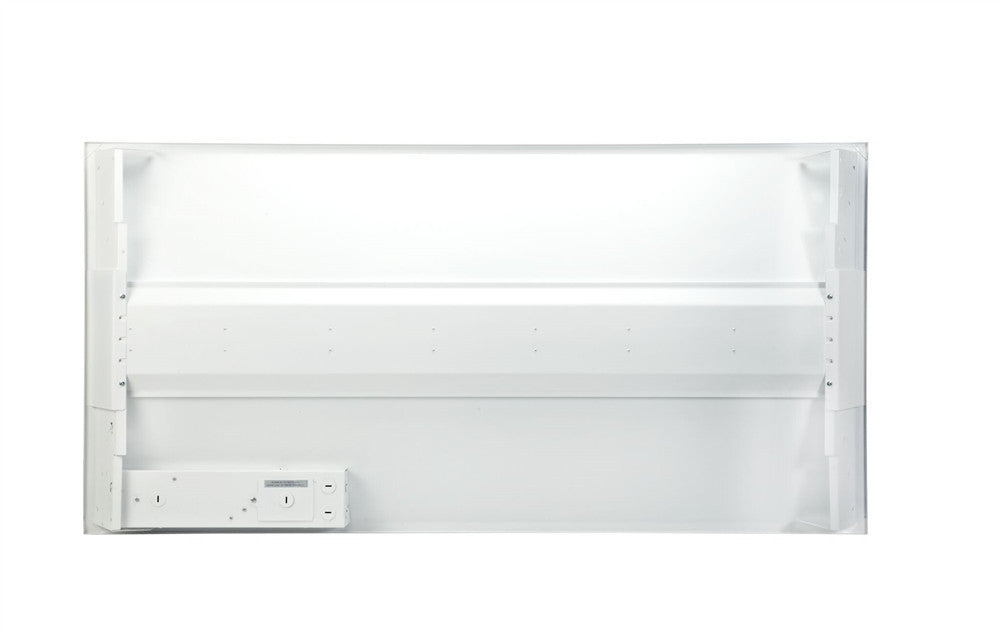

Multi watt switch on back panel for 20/25/30W on the 2'x2' and 34/38/45W on the 2'x4'. Also, color temperature selectable 35/40/50K

LIGHT UNIFORMITY

LIGHT UNIFORMITY

Advanced optical design generates even light distribution with optimal uniformity, no visible diodes, hot spots or shadows providing glare-free illumination





Architectural LED Troffer



The Architectural LED Troffer is a highly efficient and cost-effective lighting solution, providing a seamless upgrade from traditional linear fluorescent fixtures to advanced LED technology. Engineered for longevity, this troffer offers remarkable energy savings of up to 80%, along with minimal lumen depreciation throughout its lifespan, making it an ideal investment for any commercial space.

Designed with a sleek center lens, this fixture emits a soft, natural glow while delivering uniform illumination and reduced glare. This makes it perfect for a variety of settings where general-purpose lighting is essential, creating a comfortable environment for both employees and visitors.

The direct/indirect recessed troffer comes pre-equipped with a driver ensuring straightforward installation and hassle-free operation. Available in both 2’x2’ and 2’x4’ sizes, this versatile design caters to different space requirements, providing flexible options for any installation scenario. Additionally, its wattage and color temperature selector switches allow users to customize the lighting to perfectly fit specific applications, enhancing the overall functionality of the space.

Whether installed in educational institutions, healthcare facilities, airports, office buildings, or retail stores, Superior Lighting's recessed LED troffers not only enhance the aesthetics of any environment but also promote energy efficiency and sustainability. With their modern design and advanced technology, these fixtures meet the diverse lighting needs of a wide range of commercial applications, ensuring that your space remains well-lit and inviting while also reducing operational costs.



Features:

  • Available in 2'x2' and 2'x4' for recessed installation.
  • 2’x2’ wattage selectable 20/25/30W and 34/38/45W for the 2’x4’
  • Lumen output from 2500/3125/3750 for the 2’x2’, and 4250/4750/5700 for the 2’x4’.
  • Color temperature is adjustable using a switch on the back panel allowing for 35/40/50K.
  • White powder coated steel housing improves the reflectivity of the fixtures and provides a quality finish.
  • Built-in earthquake clips for safety.
  • Utilizes advanced high-powered LED technology with multiple color temperature options and a CRI of >80.
  • Standard grid ceiling drop in mounting



Electrical:

  • Input voltage of 120-277VAC
  • 10kA surge protection standard
  • Operating temperature rating of 0ºF to 104ºF (-17ºC to 40ºC)
  • Dimming: 0-10V standard - requires low voltage dimmer(extra low voltage wires will need to be run prior to installation).
  • UL listed
  • DLC qualified.



Warranty:

  • 5-year limited system warranty standard
  • Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation(as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel
