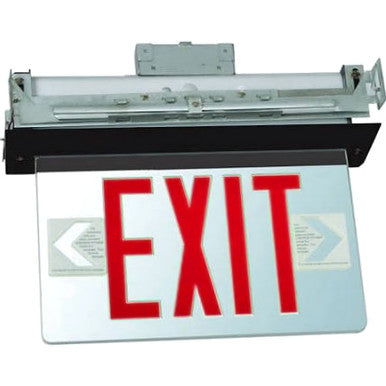

The sign includes a self-diagnostic feature that automatically performs monthly, biannual, and annual tests, ensuring compliance with life safety codes and reliable operation. The ultra-bright, energy-efficient red or green LEDs are housed within a UV-stabilized, ultra-clear acrylic edge-lit panel, providing uniform lighting. The double-faced design includes factory-installed silver or white mylar panels for optimal visibility.

Operating on a dual 120/277 voltage system, this exit sign also has an optional multi-tap for 208/220/240 volts. A charge rate/power "ON" LED indicator and a push-to-test switch ensure compliance with code testing requirements. The 4.8V maintenance-free rechargeable NiCd battery provides a minimum of 90 minutes of emergency illumination and recharges within 24 hours through a fully automatic, two-rate charger.

Installation is straightforward, with compatibility for drywall or drop ceiling mounts using included bar hangers. The housing is crafted from premium grade extruded aluminum and features a detachable trim for easy service access. Available in black or white powder-coated finishes, it comes with self-adhesive chevrons and a guide template for directional indicators.

This exit sign is UL listed for damp locations, meets UL924, NFPA101, NEC, and OSHA codes, and comes with a five-year warranty on all electronics and housing. Batteries are pro-rated for five years. Options for clear, mirror, or white panels, along with black, white, or aluminum trim, allow for customization to suit any environment.

Features:

• Ultra bright, energy efficient, long life Red or Green LED.
• UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
• Double face utilizes factory installed silver or white mylar background panel.
• Compatible with drywall or drop ceiling mount installations. Bar hangers included.
• Cannot be recessed wall mounted. Call our sales team for wall option.
• Premium-grade, extruded aluminum housing.
• Extruded aluminum trim assembly is easily detachable from below, providing accessibility for service or maintenance. Available in black or white powder-coated finishes.
• Self-adhesive chevron appliques and guide template provided for directional indication.

Electrical:

• Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• Push-to-test switch for mandated code compliance testing.
• 4.8V long life maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• UL listed
• Damp location rated
• Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.

Warranty:

• 5-year limited system warranty standard
• Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation (as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.
