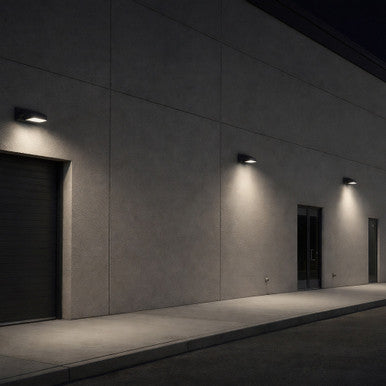

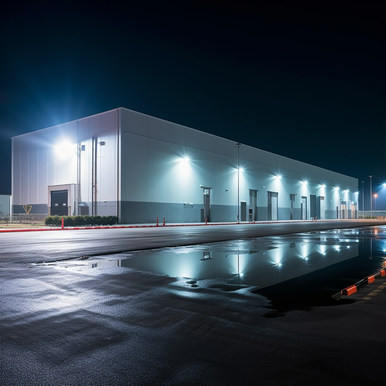

This LED wall pack provides powerful, reliable outdoor lighting designed for commercial building perimeters, security lighting, and general exterior illumination. Constructed with a durable die-cast aluminum housing and finished in a dark bronze powder coat, the fixture offers long-lasting performance in demanding outdoor environments. The shatter-resistant polycarbonate lens features high light transmittance while also providing anti-UV and fire-resistant protection, ensuring consistent illumination and durability in a wide range of weather conditions.

Engineered for versatility, this LED wall pack features selectable wattage options ranging from 21W to 100W and delivers high-performance output from approximately 4,725 to 13,500 lumens. With an impressive efficacy of up to 135 lumens per watt and a power factor greater than 0.95, the fixture provides exceptional energy efficiency while maintaining bright, uniform lighting. Integrated multi-watt and multi-CCT switches located inside the fixture allow installers to easily adjust both brightness levels and color temperature to meet the specific needs of each installation.

The Type III light distribution pattern is designed to provide wide and effective illumination for building perimeters, walkways, entrance roadways, loading areas, and other outdoor spaces that require broad lateral light coverage. The fixture also features a full cutoff design that meets Dark Sky compliance requirements by reducing glare and minimizing upward light pollution while directing light exactly where it is needed.

For added convenience and automated operation, this wall pack includes a DC button photocell with an ON/OFF switch for dusk-to-dawn functionality. The fixture is rated for wet location use with an IP65 protection rating and operates reliably in temperatures ranging from -4°F to 104°F. With a long rated life of up to 70,000 hours and backed by a 7-year warranty, this LED wall pack delivers dependable performance and reduced maintenance for commercial and industrial outdoor lighting applications.

Features

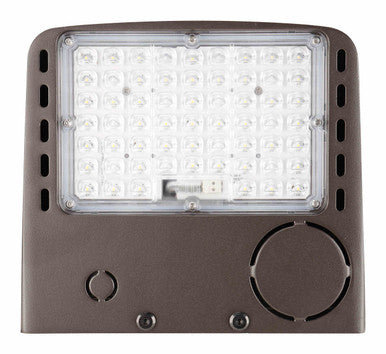

• Shatter-resistant polycarbonate lens with high light transmittance
• Anti-UV and fire-resistant PC lens construction
• Multi-watt selectable output for flexible installation
• Multi-CCT selectable: 3000K / 4000K / 5000K
• Type III light distribution ideal for building perimeters and walkways
• Full cutoff design compliant with Dark Sky requirements
• Integrated DC button photocell with ON/OFF switch
• IP65 rated for wet location outdoor installations
• Rated life of up to 70,000 hours
• 5-year manufacturer warranty

Electrical Specifications

• Wattage: 21-35W / 36-60W / 60-100W selectable
• Total Lumens: 4,725LM – 13,500LM maximum output
• Efficacy: Up to 135 lumens per watt
• Power Factor: >0.95
• Dimming: 0-10V dimmable
• Color Temperatures: 3000K / 4000K / 5000K selectable
• Color Rendering Index: CRI ≥ 80
• Operating Temperature: -4°F to 104°F

Warranty:

• 5-year limited system warranty standard
• Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation(as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel
