LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring

LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring

LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring

LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring

LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring

Ask a question

Quick Search Code: SC12964
To avoid damage this item must be purchased in multiples of 25!

SKU: 98382-GC

Click here to see all option pricing
📄 View Spec Sheet Warranty
View full details

40+ years of superior service

No hassle 14 days returns

American owned and operated

Specialize in business and Govt accounts

$5.95 USD
$9.95 USD $5.95 USD
Sale Sold out
$9.95 Shipping

904 in stock

Ships from:

Superior Lighting

Returns:

Eligible

Special Instructions:

Must be purchased in multiples of 25 only.

Quantity Discounts:

Click here for special pricing

LED T8 Linear Retrofit Bulb - 4 Foot - 10.5 Watt - 1800 Lumens - 5000K Daylight - Ballast Bypass Only - Single Sided Wiring
  • DESCRIPTION
  • SPECIFICATIONS
  • PRODUCT OPTIONS
  • REVIEWS
  • SHIPPING
  • WARRANTY & RETURNS
  • RELATED PRODUCTS

Plug and Play Retrofit (Type A)

Plug and Play Retrofit (Type A)

Ballast compatible LED tubes support quick installation to fixtures that use electronic instant start ballasts for T8s. No rewiring necessary. *Not compatible with T12 ballasts.

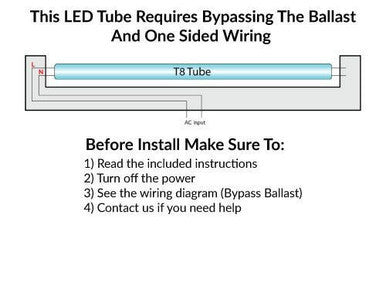

Single-Side Wiring (Type B Single-Ended)

Single-Side Wiring (Type B Single-Ended)

T8 lamps with single-side wiring receive power at one end only. Line and neutral wires connect to the same end, requiring non-shunted sockets.

Double-Side Wiring (Type B Double-Ended)

Double-Side Wiring (Type B Double-Ended)

These T8 lamps are powered from both ends—line to one end and neutral to the other. Compatible with shunted sockets.



LED T8 Bulbs



Upgrade your lighting without the hassle with T8 LED lamps that offer a seamless transition from traditional fluorescents to high-efficiency performance. Whether you're looking for a quick swap or a full system update, these versatile lamps are designed to meet the needs of both simple and advanced retrofit projects, making them ideal for commercial, industrial, and institutional spaces.



Designed to replicate the familiar look and performance of fluorescent tubes, these LED lamps feature a frosted lens and a wide 210° beam angle that provides smooth, even illumination with minimal glare. Selectable color temperatures ranging from 3000K to 5000K ensure optimal visibility in any environment, from warm retail settings and offices to work shops. In addition to delivering consistent, comfortable light, these lamps consume up to 70% less energy than fluorescent counterparts and offer a significantly longer operational life, dramatically reducing utility costs and maintenance over time.



Installation Options:

Type A – Plug-and-Play: compatible with instant start electronic T8 fluorescent ballasts, allowing you to upgrade without rewiring. Simply remove the old tube and insert the LED replacement, no electrical modifications or fixture changes required. This fast, no-fuss installation makes them perfect for large-scale projects where minimizing labor and downtime is essential.



Type B – Ballast Bypass (Direct Wire): provides greater efficiency and long-term reliability. These direct-wire lamps eliminate the ballast entirely, reducing energy consumption and removing one of the most common failure points in traditional systems. Power is wired directly to the sockets, and configurations are available for both single-ended and double-ended wiring setups.



Whether you're upgrading a warehouse, modernizing a classroom, or retrofitting an entire commercial facility, T8 LED lamps provide a smart, cost-effective solution that combines installation flexibility, energy savings, and reliable performance in one streamlined package.



Before Install Make Sure to:

1.Read the included instructions regarding your method of installation

2.Please check compatibility of existing ballast when required

3.Turn off the power at the breaker

4.All work should be performed by a qualified electrician where needed

5.Always install one test lamp before proceeding with the full area



Features:

  • Plug and play option for electronic instant start T8 ballast
  • Easy installation
  • Ballast bypass wiring option for reduced energy consumption and removal of dated hardware
  • Low glare design
  • Long life - 50,000 hours



Electrical:

  • 120-277V line voltage
  • 1700/1800 lumens depending on color temperature
  • Damp location
  • Operating temperature: 0ºF to 104ºF (-17ºC to 40ºC)
  • c-UL-us listed
  • DLC listed



Warranty:

  • 5-year limited system warranty standard
  • Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation (as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.
