LED T8 Linear Retrofit Bulb With Emergency Battery Backup - 4 Foot - 17Watt - 2200 Lumens - 35K/40K/50K - Ballast Bypass Only

Name: LED T8 Linear Retrofit Bulb With Emergency Battery Backup - 4 Foot - 17Watt - 2200 Lumens - 35K/40K/50K - Ballast Bypass Only
Brand: My Store
SKU: S11731
Price: 79.96 USD
Availability: InStock

LED T8 Linear Retrofit Bulb With Emergency Battery Backup - 4 Foot - 17Watt - 2200 Lumens - 35K/40K/50K - Ballast Bypass Only

Ask a question

Quick Search Code: SC12842
To avoid damage this item must be purchased in multiples of 20!

SKU: SKU:S11731

Code Compliance:*

Click here to see all option pricing

📄 View Spec Sheet Warranty

View full details

40+ years of superior service

No hassle 14 days returns

American owned and operated

Specialize in business and Govt accounts

$79.96 USD

Sale Sold out

$9.95 Shipping

89 in stock

Quantity

Ships from:

Superior Lighting

Returns:

Eligible

Special Instructions:

Must be purchased in multiples of 20 only.

Quantity Discounts:

Click here for special pricing

LED T8 Linear Retrofit Bulb With Emergency Battery Backup - 4 Foot - 17Watt - 2200 Lumens - 35K/40K/50K - Ballast Bypass Only

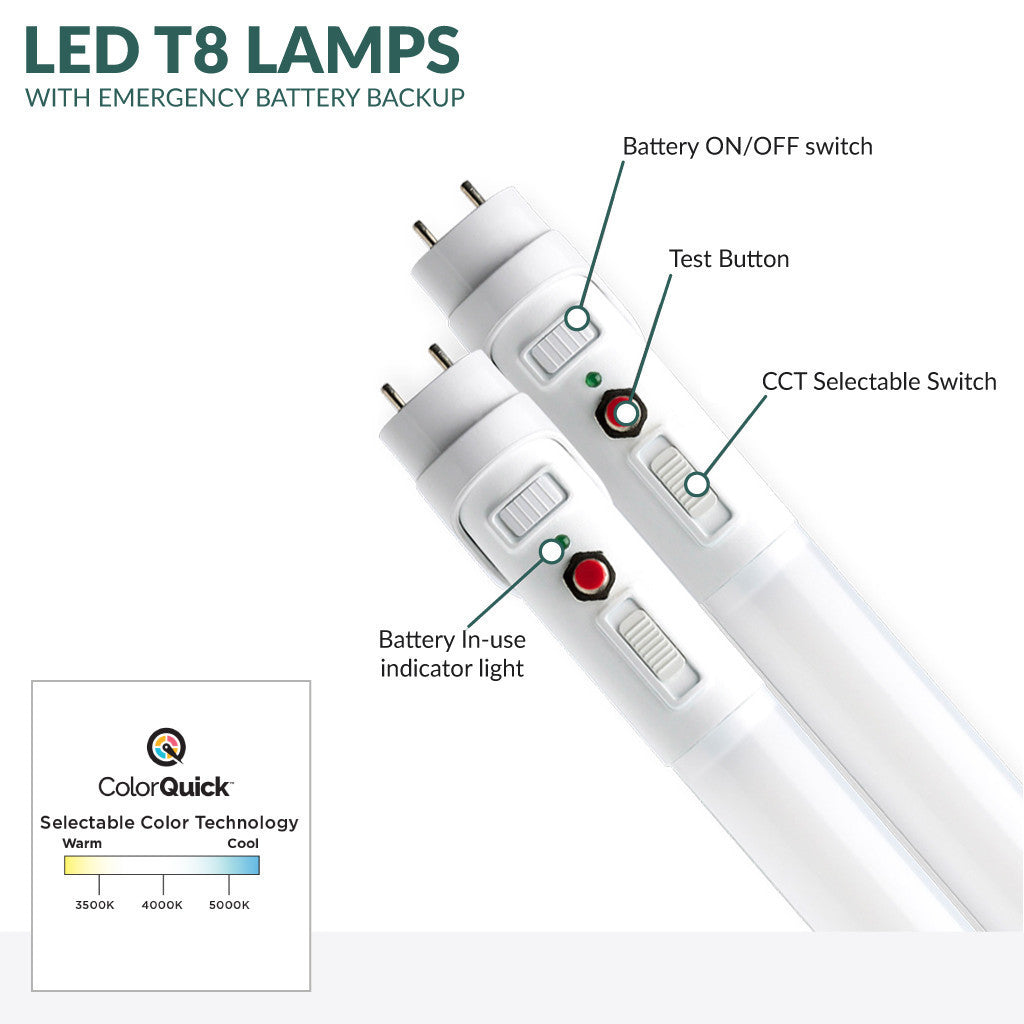

LED T8 LAMPS WITH EMERGENCY BATTERY BACKUP

EMERGENCY TEST SWITCH

This light has A built-in test button allowing for routine maintenance without shutting down power or tripping circuit breakers.

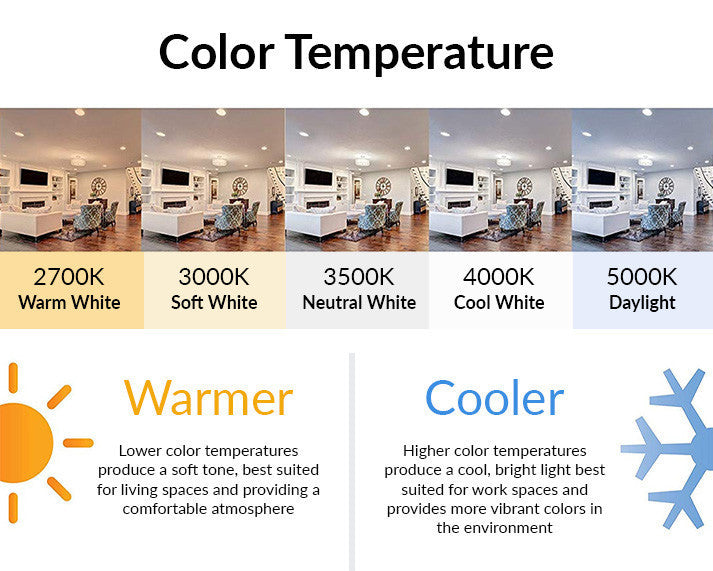

COLOR SELECTABLE

The LED T8 has a color selectable switch allowing you to choose from 5000K Daylight, 4000K Cool White, and 3500K Neutral White..

TWO OPTIONS

Two versions are available: The standard emergency listing and the UL924 emergency compliant model, which includes dedicated locked sockets..

T8 LED Tubes with Emergency Battery Backup

As traditional T8 fluorescent lamps are phased out, upgrading to LED has become the clear choice for energy-conscious facilities. However, a consistent challenge has been compatibility with emergency battery backup systems, which often require separate expensive units that are bulky, difficult to install, and occupy valuable ceiling space.

This T8 Emergency Battery Backup LED Lamp solves that problem with a fully integrated all-in-one solution. Designed in the same size and shape as a standard T8, it operates like a typical LED lamp under normal conditions, then seamlessly switches to emergency mode during power loss, delivering reliable illumination without the need for external components.

Two versions are available to meet different application needs. The standard model installs easily using a ballast bypass 2 sided wiring setup. The UL924 compliant version(also installed using the same method) includes a dedicated tombstone socket kit and is engineered for installations that must meet strict safety and emergency lighting codes.

In the event of an outage, both versions deliver up to 90 minutes of emergency lighting at 30% lumen output, ensuring visibility for safe occupant egress and first responder access. A built-in test button allows for routine maintenance without shutting down power or tripping circuit breakers.

Features:

Battery life provides 90 minutes of 30% output
Battery charge time 24hrs
G13 Bipin Base
Color temperature selectable 3500K/4000K/5000K
Frosted Lens to eliminate glare
50,000-hour lifespan

Electrical:

Voltage 120V-277V
Lithium battery
Un-shunted Tombstones required
CRI: 83
Beam Spread: 140°
Operating Temperature: -20C (-4F) to a maximum of +45C (+113F)
Efficacy: Up to 135 LPW
Damp Location Rated
cULus Rated
DLC Compliant

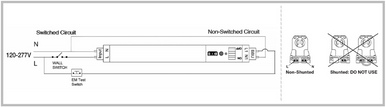

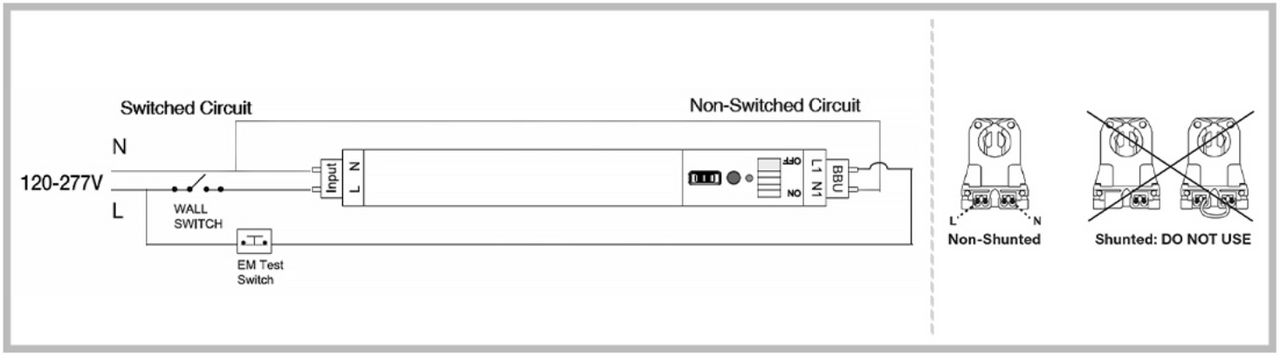

Wiring Instructions – LED T8 Lamp with Emergency Backup

Power Supply:
Connect the line (L) and neutral (N) wires from the 120–277V supply to the sockets on the input side of the lamp as shown. This side is typically labeled Input (L and N).
Switched Circuit:
Wire the line (L) through a wall switch to control the main operation of the lamp.
Emergency Backup Driver (BDD):
Connect the non-switched line (L) and neutral (N) wires directly to the emergency backup driver on the opposite end, ensuring continuous power to charge the internal battery. *For the UL924 model, only the Neutral line must be wired to both ends.
Socket Type Requirement:
Use non-shunted lamp holders only. Do NOT use shunted tombstones, as they can cause malfunction or failure of the lamp.

Notes:

This lamp is double-ended powered (L and N on one end, battery backup on the other).
The non-switched circuit ensures the battery remains charged even when the wall switch is off.
Always verify polarity and manufacturer wiring instructions before installation.

Before Install Make Sure To:

1.Read the included instructions regarding your method of installation

2.Please check compatibility of existing ballast when required

3.Turn off the power at the breaker

4.All work should be performed by a qualified electrician where needed

5.Always install one test lamp before proceeding with the full area

Warranty:

5-year limited system warranty standard
Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation (as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.
