Micro Emergency Battery Back-Up Inverter - 20w Max Load - 120-277V - Surface Mount - White Finish

Micro Emergency Power Inverter Systems

EMERGENCY BATTERY

Designed to provide emergency power to incandescent, fluorescent, and /or LED fixtures.

MOUNTING OPTIONS

Available in a T-Grid Mount, Dry Wall Recessed Mount, and Surface Mount for MPS and SPS models. The LPS only comes in a surface mount

ADJUSTABLE OUTPUT

Adjustable output can only be used on 0-10V dimmable lights

Micro Emergency Inverter System

Micro emergency power inverters are an integral part of any lighting system. Supplying back-up power during an outage to lighting is a sure-fire way to ensure the safety of your property and most importantly personnel.

Our MPS Series inverter systems are designed to provide true sinusoidal AC emergency power to connected light fixtures of between 20 and 55 watts.

MPS models are designed for easy installation either on or near controlled fixtures and support Normally-ON, Normally-OFF or SWITCHED operation. This makes them a fast and simple solution eliminating the potential of a serious incident.

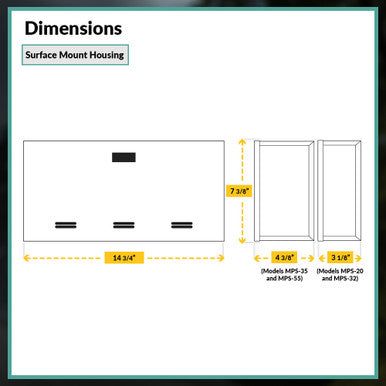

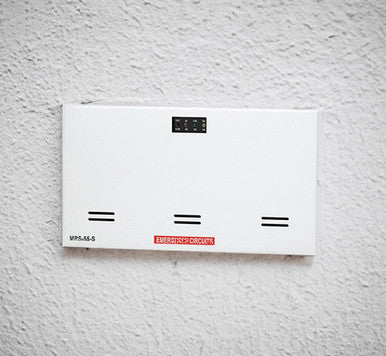

Multiple mounting options are available for this model allowing for ease of installation in any area. Surface mount models are designed for mounting to walls by means of keyhole slots provided in the back of the unit housing. Recess models provide recess mounting holes on both sides of the enclosure for use with drywall or wooden paneling. A drop ceiling grid mount design allows simple drop-in installation between T-grid runs. Safety wires (not included) are required for attachment to building structures. With a high-grade powder coated modern steel housing this system will blend into any environment, residential or commercial.

Additional Special-Order Options

*Must call in to our commercial sales team to order these features

CEC: Certified to CEC under Title 20 regulations
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes
Remote Test Switch Panel

Electrical:

-Input:

Input Voltages: 120/277VAC
Input Frequencies: 60Hz ±2%
Input Protection: Provided by Service Panel, Rated 20A max

-Output:

Output Voltages: (60Hz) 120 or 277VAC
Waveform: Sinusoidal (digitally controlled) PWM design
Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
Output Distortion: Less than 3% THD (linear load)
Output Protection: Inverter fuse

Warranty/Listings:

Unit: (excluding lamps) Full coverage against defects in materials and workmanship for (3) years from date of shipment
Battery: Full warranty of (3) years on SLA and (5) years on NiCd, plus an additional 7 years of pro-rata coverage
All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Optional T-Grid models are plenum rated, and meet City of Chicago CCEA requirements
UL listed for damp locations (32°F-122°F or 0°C-50°C for NiCd 20W/35W models and 68°F-86°F or 20°C-30°C for 32W/55W lead calcium models)
FCC Part 15 Class B compliant
Three year warranty on inverter unit and internal battery. *Lamps or fixtures powered by this unit are not covered under this warranty.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
