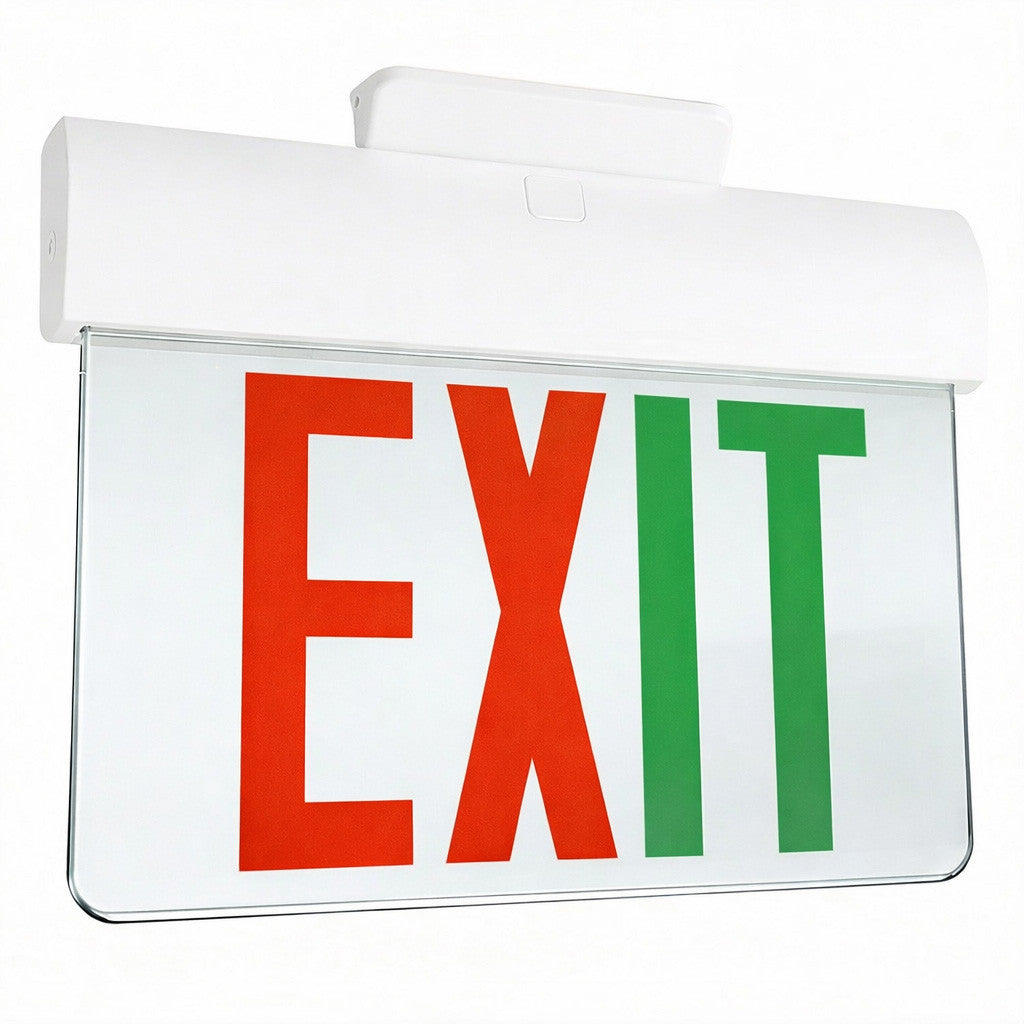

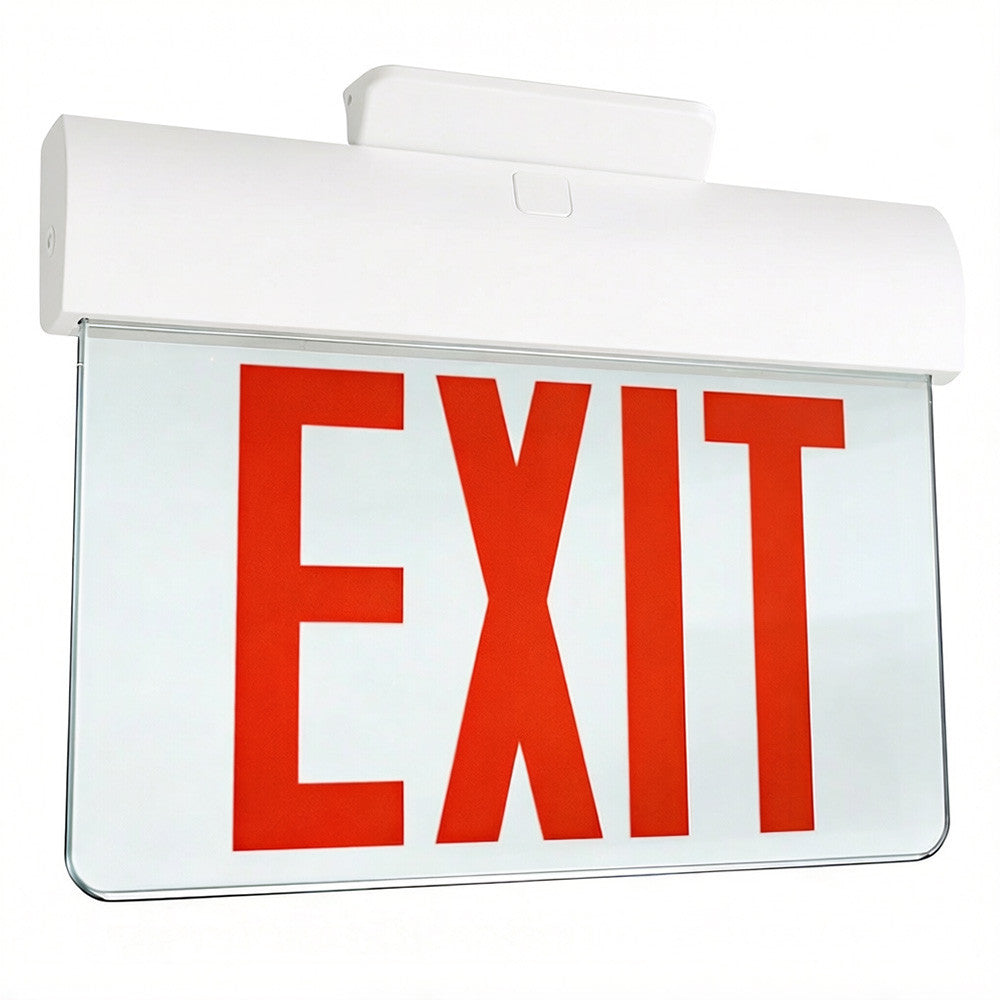

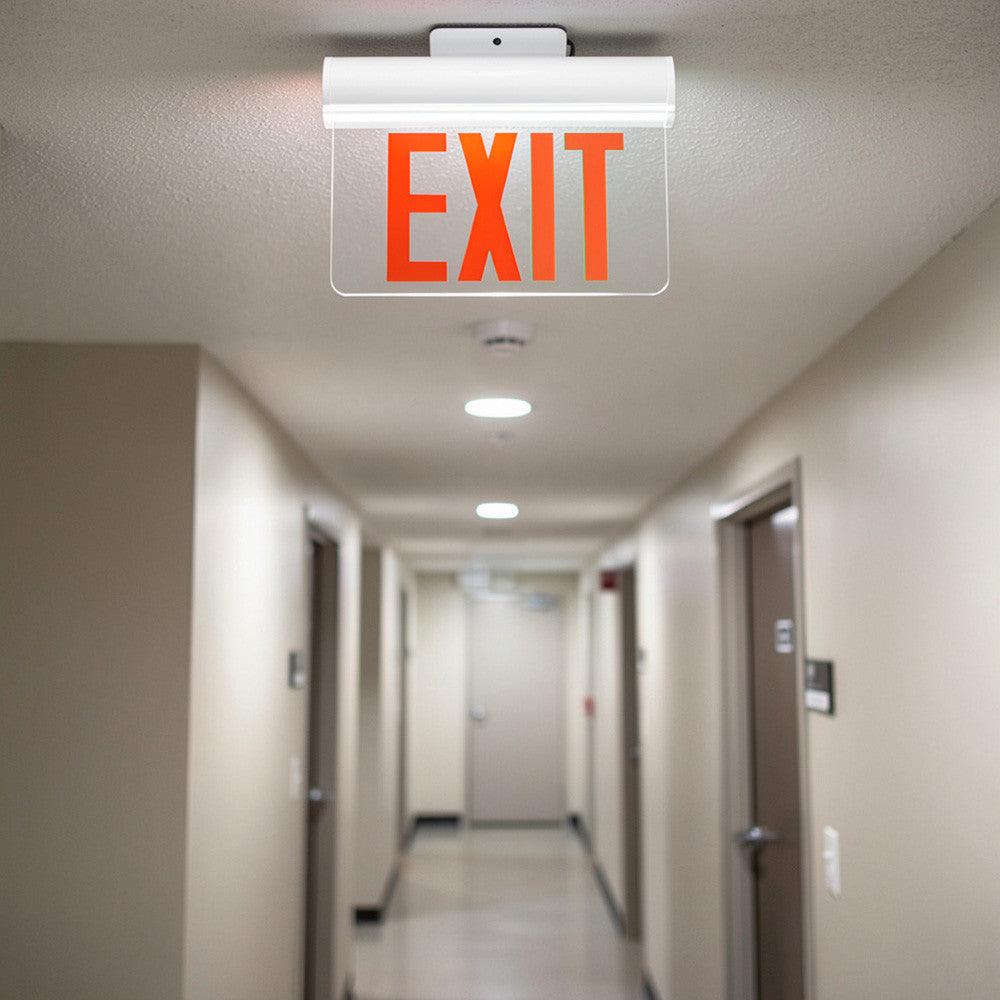

This plastic edge-lit LED exit sign provides reliable, code compliant emergency egress illumination for commercial buildings, restaurants, hotels, healthcare facilities, and multi-family properties. The UV-stabilized acrylic edge lit panel ensures consistent, uniform illumination for maximum visibility.

Ultra-bright, energy-efficient red or green LEDs provide long-life performance with minimal maintenance. The universal single/double-face design includes a factory-installed mirror background panel and stick-on mirror sheet to support flexible field configuration. A unique bi-color LED indicator light clearly displays battery condition, green for normal operation and red to signal battery check providing added peace of mind for facility managers.

The 3.6V long-life, maintenance-free rechargeable NiCd battery delivers a minimum of 90 minutes of emergency illumination. An internal solid-state transfer switch automatically connects the battery to the LED board during power loss, and the fully automatic solid-state two-rate charger restores a discharged battery within 24 hours.

Available in a standard surface mount canopy for top, end or back mount, or with the optional recessed mount for ceiling and wall applications. The recessed-mount trim assembly is easily detachable from below for convenient service access. Self-adhesive chevron appliques and a guide template are included for directional indication.


Features:

• Ultra bright, energy efficient, long life Red or Green LED exit illumination.
• UV-stabilized acrylic edge lit panel provides consistent, uniform illumination.
• Universal single/double face utilizes factory-installed mirror background panel and stick-on mirror sheet.
• Injection-molded engineering-grade 5VA flame-retardant, high-impact resistant thermoplastic housing.

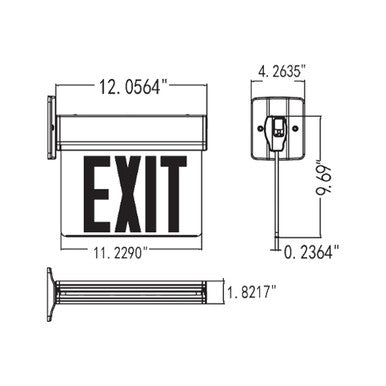

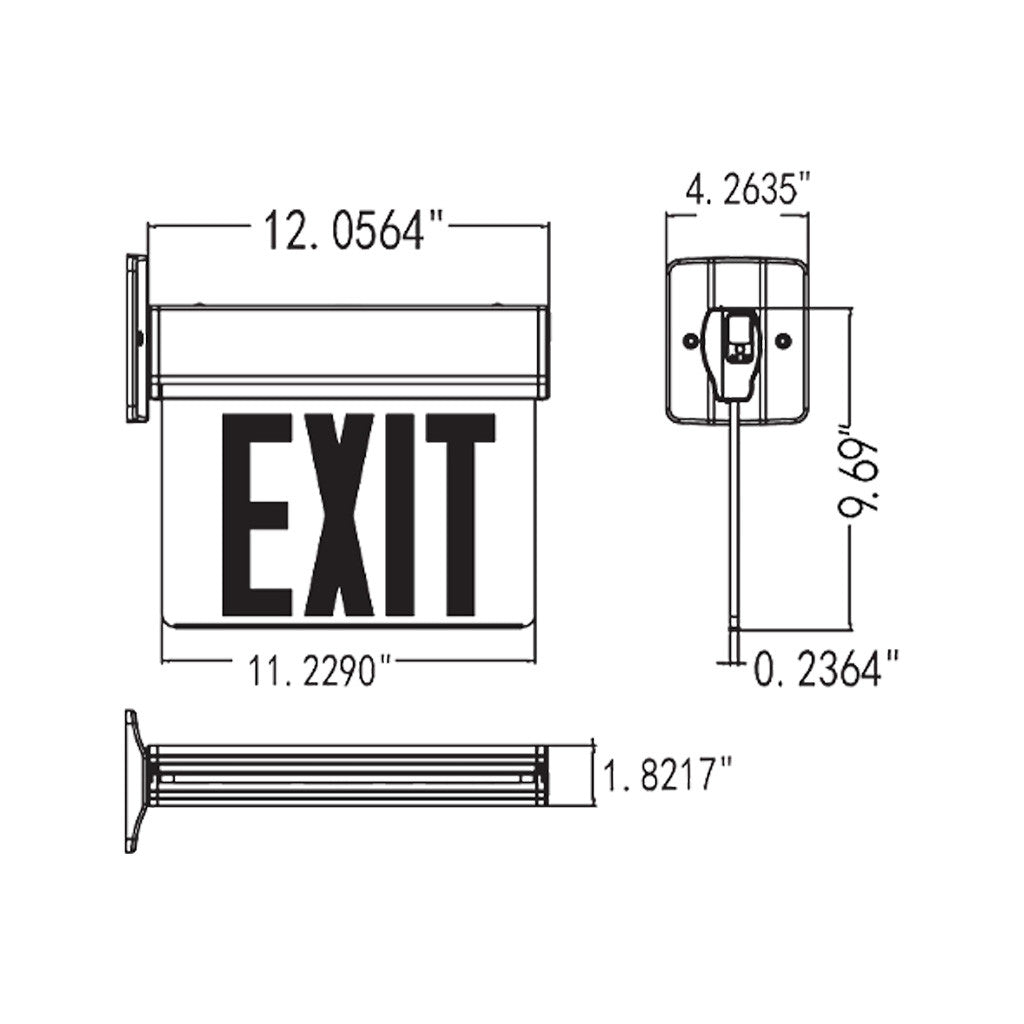

• Standard plastic surface mounting canopy included for top, end, or back mount.
• Optional recessed mounting kit available for ceiling and wall applications.
• Recessed-mount trim assembly easily detachable from below for service access. Available in white, black, or silver powder-coated finishes.
• Bar hangers included with recessed version for drywall or drop ceiling installations.
• Self-adhesive chevron appliques and guide template provided for directional indication.

Electrical:

• Dual 120-277 voltage standard.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 6V long-life, maintenance-free rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state two-rate charger recharges a discharged battery within 24 hours.
• UL listed for damp locations (0°C – 50°C).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, and local/state codes. Certified to CEC under Title 20 regulations.

Warranty:

• 5-year limited system warranty standard
• Warranty does not cover product failure due to an over-voltage event (power surge), improper dimmer or control installation (as this may cause damage to the internal driver), or inconsistent amperage in the circuit. For installations where power surge may be possible, Superior recommends installing additional surge protection at the fixture or electrical distribution panel.
